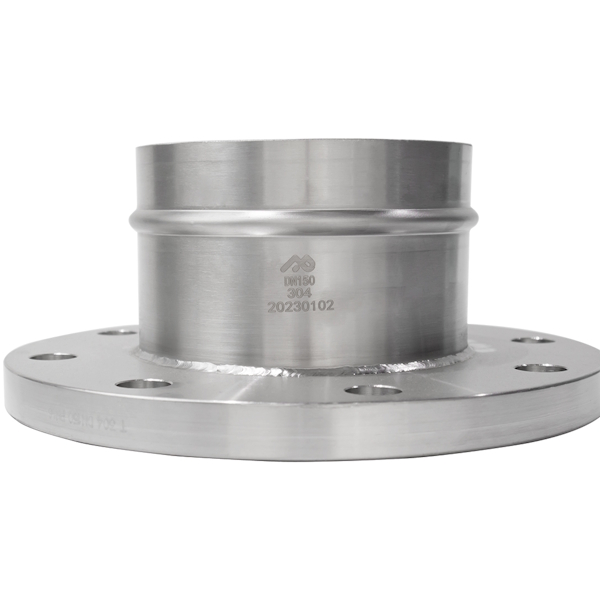

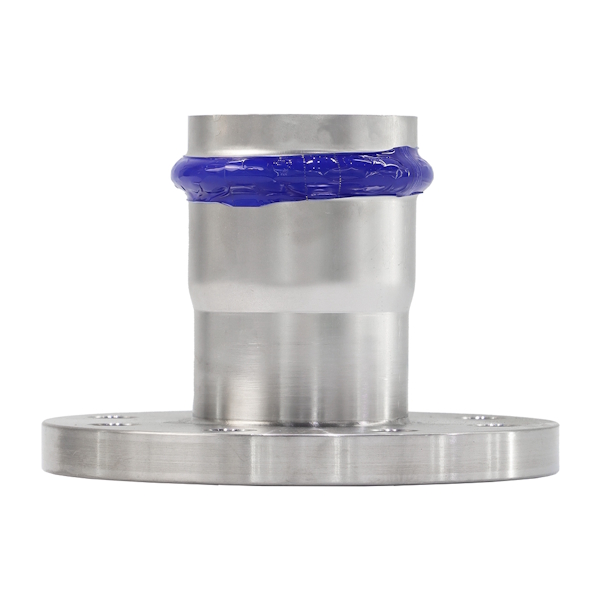

The AP Stainless ANSI Flange is designed for high-performance piping systems requiring standardized flange connections. Built from 304 Stainless Steel, this fitting delivers exceptional corrosion resistance, clean installation, and long-term reliability in demanding environments.
Key Features
- Proven Technology: Simple and robust connection ensures long-term system reliability.
- Flameless Installation: Clean, safe assembly reduces installation time and labor costs.
- Cost Efficiency: Achieve over 50% reduction in traditional installation costs.
- Vibration Absorption: Elastomeric connections absorb vibration, thermal expansion, and contraction.
- Corrosion Resistance: Chromium dioxide layer protects against harsh environments.
- Fluid Integrity: No risk of contamination to conveyed fluids.
- UV Stability: No degradation from UV exposure.
- Low Expansion: Thermal expansion factor of only 16, ensuring dimensional stability.
Size Range & Bolt Configuration
Available in 2 1/2″ to 10″, each ANSI Flange is supplied with (2) Union Connectors and bolts for secure installation:
- 2 1/2″–3″: Includes 4 bolts
- 4″–10″: Includes 1 union and 8 bolts
Material
- 304 Stainless Steel: Hygienic, durable, and corrosion-resistant for long-term use in industrial environments.
Seal Options
- EPDM: Standard seal for press connections, suitable for general applications
- FKM: Optional seal for high-temperature and chemical environments
Applications
- Compressed Air / Inert Gases: Ideal for corrosive environments and food-grade systems
- Chemical Handling: Excellent corrosion resistance
- Cooling Systems: Coolers, cooling towers, and chillers (glycol-based)
- Process Water: Reliable in industrial water systems
- Oils: Suitable for cutting fluids and lubricants
- Power Generation: Built to perform in demanding energy sector conditions
Certifications
- ASME B31.1, ASME B31.3, ASME B31.9
- ASTM A312
- ISO 8573-1
Warranty
- 10-Year Warranty on all AP Stainless fittings
