Key Features
- ANSI Standard compliance
- Stainless steel shaft-to-disc connection for durability

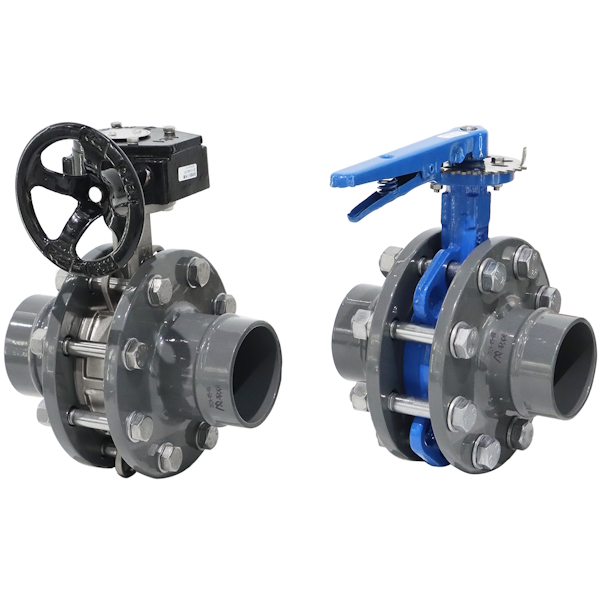

- Bar handle and wheel design for easy operation
- Bi-directional shutoff capability
- 100% factory tested for quality assurance
Technical Specifications
- Seal Material: NBR (standard), PTFE (special order)
- Body Material: Cast Iron
- Optional High-Temperature Seals: FKM/Viton
- Sizes Available: 2-1/2″, 3″ ,4″, 6″, 8″, 10″
- Max Working Pressure (NBR):
- 232 psi for 2-1/2″ to 6″
- 188 psi for 8″-10″
- Temperature Range (NBR): -4°F to +176°F
- High-Temperature Options:
- PTFE seats for up to 392°F (special order)
- Testing Standards: MSS SP-61 / API 598
- Flanges: Two ANSI aluminum flanges assembled per valve
