Equal 90 Degree Elbow

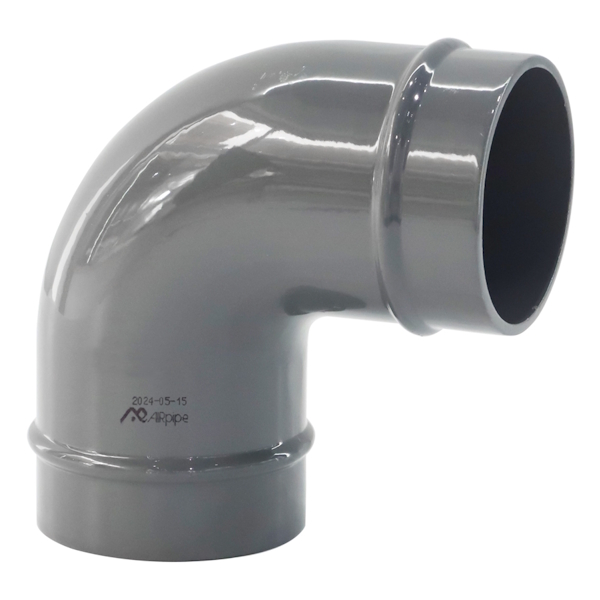

The AIRpipe Equal 90° Elbow is a high-performance aluminum fitting designed to provide a precise 90-degree directional change in compressed air piping systems. Engineered for durability and efficiency, this elbow ensures optimal airflow with minimal pressure loss, making it ideal for industrial environments where reliability and energy savings are critical. Its lightweight yet robust construction allows for easy handling and installation without the need for welding, threading, or special tools. The equal-sized ends guarantee a perfect fit with matching pipe diameters, while the leak-proof design supports long-term system integrity. Built to withstand demanding conditions, this component is reusable and adaptable, offering flexibility for future system modifications.
Category: Connectors, Elbow Connectors
Brand: AIRpipe

RECENTLY VIEWED

Double Female NPT Locking Ball Valve
Double Female NPT Locking Ball Valve

Key Features:
- Material: High-quality aluminum construction; 10 sizes available in stainless steel for enhanced durability.
- Size Range: 3/4″ through 10″.
- Connection Styles:

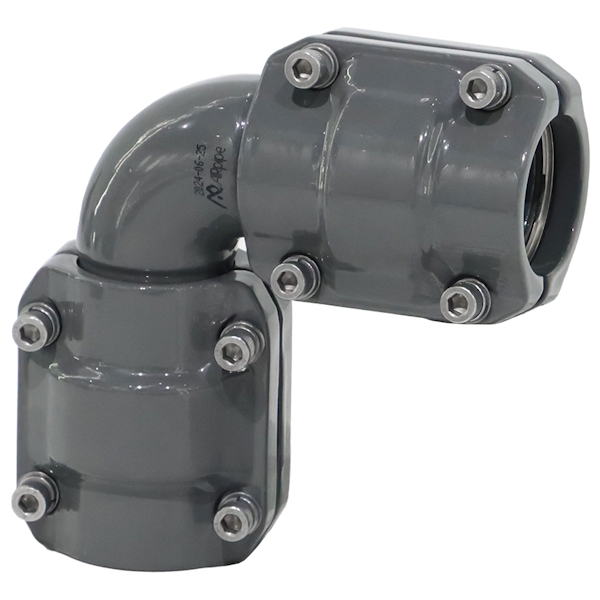

- 3/4″ through 2″: Grab Ring Clamping Style for quick, secure installation.
- 2-1/2″ through 10″: Lugged Ring Clamping Style for heavy-duty applications.
- Performance: Leak-proof design ensures minimal pressure drop and maximum efficiency.
- Installation: No welding or threading required; easy assembly and disassembly for system modifications.
- Applications: Ideal for industrial compressed air systems requiring reliability and long service life.
Benefits:
- Lightweight yet robust construction.
- Corrosion-resistant for extended lifespan.
- Energy-saving design with optimum airflow.

Additional information
Weight
0.7106 lbs
AIRpipe Outer Dimension
20mm (3/4"), 25mm (1"), 40mm (1-1/2"), 50mm (2"), 63mm (2-1/2"), 80mm (3"), 100mm (4"), 150mm (6"), 200mm (8"), 250mm (10")
Color
Gray, Silver Metallic
Features
90 Degree, High Flow
Pressure
188 PSI, 232 PSI, 29.9 inHg (99% vacuum), 300 PSI
Connection
Grab Ring Clamping Style, Lugged Ring Clamping Style
Temperature
-4°F to +176°F
Material
Aluminum, Stainless Steel
AIRpipe Certification
ASME, ASTM, CE, CRN, EN, ISO 14001, ISO 8573-1, ISO 9001, TS, TUV, UL

Use AIRpipe products in your next project design.

Download the drawing files in AutoCAD or STEP formats for your design software.

equal-90-deg-elbow-cad.zip (ZIP, 3.3MB)
ZIP CAD files
Download
