Key Advantages
- Proven Reliability: Simple and robust connection design ensures long-term system performance.
- Fast, Flameless Installation: AP Stainless technology reduces installation and repair time by over 50%, eliminating the need for welding or threading.
- Vibration Absorption: Elastomeric connections accommodate vibration, expansion, and contraction for system stability.
- Corrosion Resistance: Chromium dioxide layer protects against harsh environments.
- Fluid Safety: No risk of contamination to conveyed fluids.
- UV Resistant: No degradation from UV exposure.
- Thermal Stability: Low expansion factor of 16 maintains dimensional integrity under temperature fluctuations.
Size & Connection Options
- Available Sizes: ½” to 10″
Connection Types:

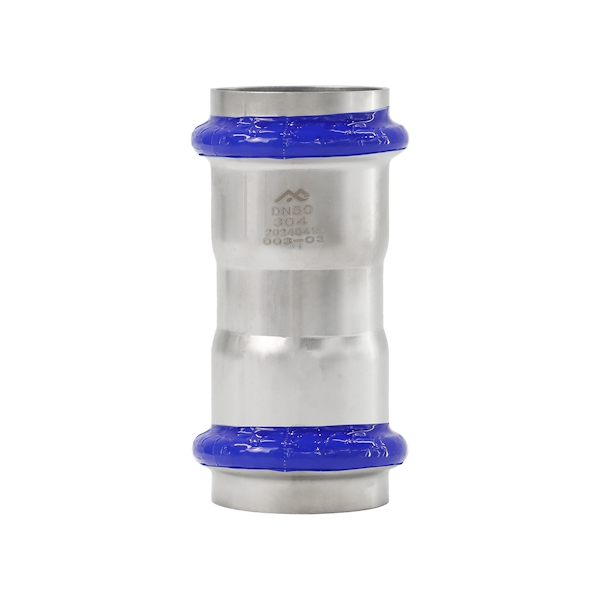

- ½”–4″:
- Quick press installation
- Built-in sealing for gases and liquids
- Extended fitting sleeve ensures pipe alignment

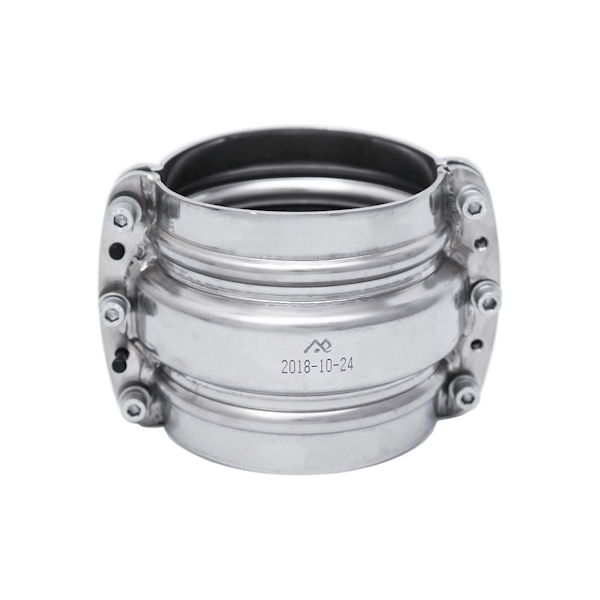

- 5″–10″:
- Quick clamshell connection
- Includes: (2) Union Connectors
- Convex ring allows for full-bore inner diameter
- Concentric sealing ensures a leak-free connection
Material & Seals
- Material: 304 Stainless Steel
- Standard Seals: EPDM for general use
- Optional Seals: FKM for high temperature and chemical resistance
Applications
- Compressed Air & Inert Gases: Especially in corrosive environments and food service operations
- Chemical Processing: Excellent corrosion resistance
- Cooling Systems: Coolers, cooling towers, and chillers (glycol)
- Process Water Systems
- Industrial Oils: Including cutting fluids
- Power Generation Facilities
Certifications
- ASME B31.1 – Power Piping
- ASME B31.3 – Process Piping
- ASME B31.9 – Building Services Piping
- ASTM A312 – Seamless and Welded Austenitic Stainless Steel Pipes
Warranty
All AP Stainless fittings are backed by a 10-year warranty, ensuring long-term value and peace of mind.
