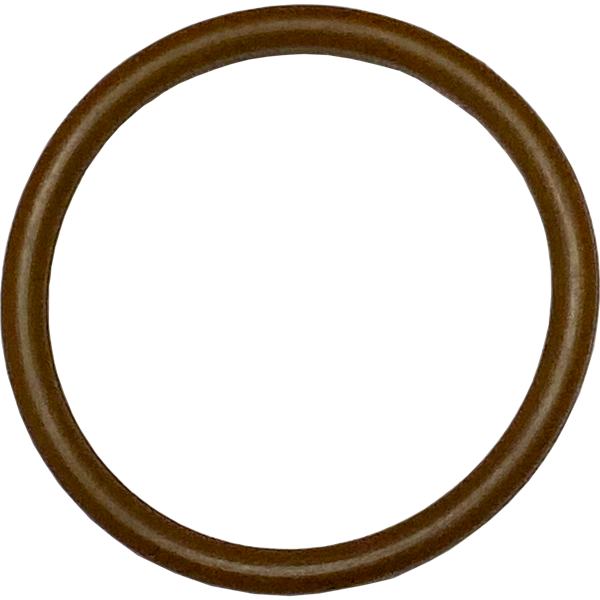

Press Seal FKM
A high-performance sealing component designed for contractors working with stainless steel press-fit piping systems. Ideal for high-temperature and chemical applications, this seal ensures a leak-proof connection between pipe and fitting. To use, insert the FKM seal into the press fitting before pressing the joint with an approved tool. Its durable elastomeric design absorbs vibration and thermal expansion, maintaining system integrity under demanding conditions. Compatible with AP Stainless fittings, the FKM seal provides superior resistance to heat, chemicals, and corrosion, making it essential for chilled water, steam, air, and aggressive fluid systems.
SKU: S3000S
Category: Accessories, Connectors, Pipe to Pipe Connectors
Brand: AP Stainless, AQUApipe

Key Features
- Seal Material: FKM / Viton
- Temperature Range: Up to +200°C (392°F) for continuous operation
- Chemical Resistance: Excellent compatibility with oils, fuels, and aggressive chemicals
- Durability: Superior aging, ozone, and compression set resistance
- Application: Ideal for AIRpipe aluminum systems operating under high thermal and chemical stress
- Available Sizes: 3/4″ up to 10″
Size Range
- Compatible with fittings from ½” to 10″, covering small to large-diameter piping systems.
Applications
- Chilled/Cooled Water
- Hot Water
- Process Water
- Low Pressure Steam
- Compressed Air & Inert Gases
- Vacuum Systems
- Chemicals
- Hydraulic Oils
- Acid & Caustic Solutions
- Wastewater
- Diesel Exhaust Fluid (DEF)
Certifications
- ASME B31.1, B31.3, B31.9
- ASTM A312
- ISO 9001, 14001, 45001
Warranty
- Backed by a 10-year warranty on all AP Stainless fittings when installed using approved seals and tools.

Additional information
Weight
0.01 lbs
AP Stainless Outer Dimension
16mm (1/2"), 20mm (3/4"), 25.4mm (1"), 32mm (1-1/4"), 40mm (1-1/2"), 50.8mm (2"), 63.5mm (2-1/2"), 76.1mm (3"), 101.6mm (4"), 133mm (5"), 159mm (6"), 219mm (8"), 273mm (10")
Color
Brown Orange
Features
High Flow
Pressure
188 PSI, 1mbar/0.03inhg (Full industrial vacuum), 200 PSI
Connection
Press
Temperature
FKM/FPM -4°F to +392°F
Material
FKM
AP Stainless Certification
ASME, CE, EN, ISO 14001, ISO 45001, ISO 9001, TS, TUV, UL, ASME B31.1, B31.3, B31.9, ASTM A312, ISO 9001, 14001, 45001
