Quick Drop

Product Image

Quick Drop

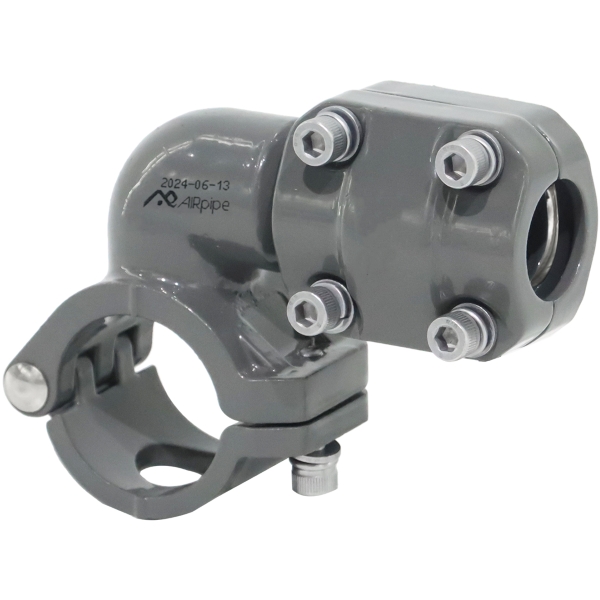

The Quick Drop is a specialized fitting designed for creating efficient and reliable drop points in AIRpipe aluminum compressed air systems. Engineered for precision and durability, this component ensures maximum airflow with minimal pressure loss, making it an essential solution for industrial environments where performance and reliability are critical.

Category: Connectors, Quick Drop Saddle Connectors

Brand: AIRpipe

Description Additional information CAD Files

Why Choose Quick Drop?
- Durable Construction: Manufactured from high-grade aluminum for superior strength and corrosion resistance.
- Leak-Proof Design: Features a captive seal system that guarantees airtight connections, reducing energy waste and maintenance costs.
- Precision Alignment: Equipped with an alignment stub for accurate positioning during installation, ensuring a perfect fit every time.
- Optimized Flow Path: Internal design minimizes turbulence and pressure drop, delivering consistent air supply to your tools and equipment.
- Fast Installation: Requires only a hole saw bit for setup, reducing installation time and labor costs.
Technical Specifications
- Saddle Drop OD Sizes:
- 3/4″
- 1″
- Saddle Pipe OD Sizes:
- 1″
- 1-1/2″
- 2″
- 2-1/2″
- 3″
- 4″
- 6″
- 8″
Applications
The Quick Drop is ideal for creating drop points in compressed air systems for:
- Pneumatic tools and machinery
- Assembly lines and workstations
- Industrial automation setups
- Maintenance and repair stations
Benefits
- Energy Efficiency: Airtight seals prevent leaks, reducing compressor load and energy consumption.
- Versatility: Compatible with a wide range of pipe sizes for flexible system design.
- Longevity: Resistant to corrosion and wear, ensuring long-term reliability in harsh environments.

Additional information

Weight

0.6688 lbs

Reducing Pipe Connector

25mm (1") to 20mm (3/4"), 25mm (1") to 25mm (1"), 40mm (1-1/2") to 20mm (3/4"), 40mm (1-1/2") to 25mm (1"), 50mm (2") to 20mm (3/4"), 50mm (2") to 25mm (1"), 63mm (2-1/2") to 20mm (3/4"), 63mm (2-1/2") to 25mm (1"), 80mm (3") to 20mm (3/4"), 80mm (3") to 25mm (1"), 100mm (4") to 20mm (3/4"), 100mm (4") to 25mm (1"), 150mm (6") to 20mm (3/4"), 150mm (6") to 25mm (1"), 200mm (8") to 25mm (1")

Color

Gray, Silver Metallic

Features

High Flow, Quick Installation

Pressure

188 PSI, 232 PSI, 29.9 inHg (99% vacuum), 300 PSI

Connection

Grab Ring Clamping Style, Hinge

Temperature

-4°F to +176°F

Material

Aluminum
