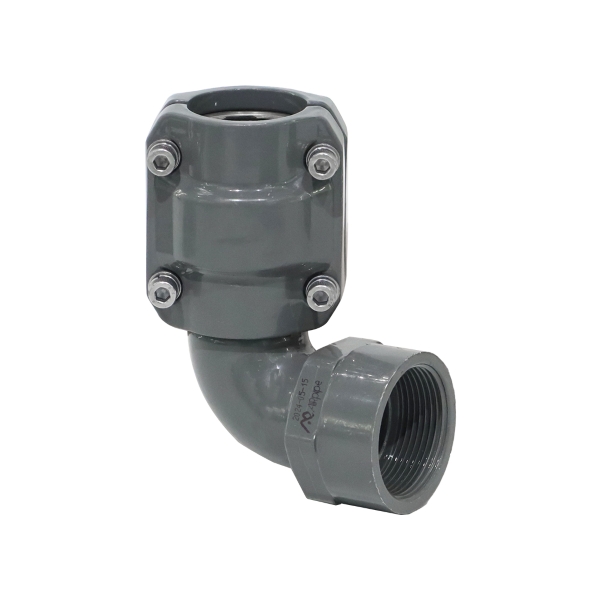

Female Threaded Elbow

Product Image

The AIRpipe Female Threaded Elbow is a precision-engineered fitting designed to deliver superior performance in compressed air systems. Built for durability and efficiency, this elbow provides a secure, leak-free connection while maintaining optimal airflow throughout your network. Its robust aluminum construction ensures long-lasting reliability, even in demanding industrial environments. This component is essential for creating directional changes in piping layouts without compromising system integrity or pressure stability.

Category: Connectors, Elbow Connectors

Brand: AIRpipe

Description Additional information CAD Files

Available in Female NPT sizes: 1/2″, 3/4″, 1″, 1-1/2″, and 2″, the AIRpipe Female Threaded Elbow offers versatile compatibility for a wide range of applications, making it an ideal choice for manufacturing, automotive, food processing, and other industries that require dependable air distribution solutions.
Key Features:
- Premium Aluminum Body: Corrosion-resistant and lightweight for easy installation.
- Precision Female NPT Threads: Ensures a tight, leak-proof seal.
- Optimized Flow Design: Reduces pressure drop and turbulence for maximum efficiency.
- Industrial Grade Performance: Handles high pressure and temperature variations with ease.
Applications: Perfect for compressed air systems where directional changes are needed without sacrificing performance or reliability.

Additional information

Weight

0.057 lbs

Pipe to Female NPT Adapter

20mm (3/4") Pipe to (1/2") Female NPT, 20mm (3/4") Pipe to (3/4") Female NPT, 25mm (1") Pipe to (1/2") Female NPT, 25mm (1") Pipe to (1") Female NPT, 40mm (1-1/2") Pipe to (1-1/2") Female NPT, 50mm (2") Pipe to (2") Female NPT

Color

Gray, Silver Metallic

Features

90 Degree, High Flow

Pressure

188 PSI, 232 PSI, 29.9 inHg (99% vacuum), 300 PSI

Connection

Grab Ring Clamping Style, Threaded

Temperature

-4°F to +176°F

Material

Aluminum
