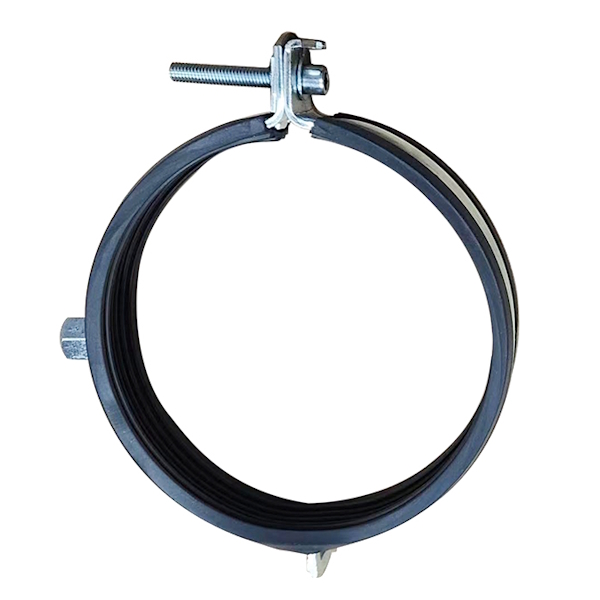

Fixture Clip Steel
The Fixture Clip is a high-performance pipe support solution designed for the suspension of stationary, non-insulated piping systems. Engineered for fast installation and long-term durability, it features a hinged clamp mechanism that simplifies mounting while maintaining high structural integrity.
Recommended Use: Specifically designed for use with AIRpipe aluminum pipe systems, providing secure and vibration-resistant support in industrial and commercial compressed air installations.
Available Sizes: Compatible with pipe outer diameters from 1-1/2″ to 8″.
Recommended Use: Specifically designed for use with AIRpipe aluminum pipe systems, providing secure and vibration-resistant support in industrial and commercial compressed air installations.
Available Sizes: Compatible with pipe outer diameters from 1-1/2″ to 8″.
Key Features:
- Quick & Easy Installation: Hinged clamp closes with one hand—no need to disassemble or turn screws.
Applications: Ideal for mechanical, plumbing, and industrial installations requiring secure, sound-insulated pipe suspension with fast and reliable mounting—especially suited for AIRpipe aluminum compressed air systems.
Additional information
Weight
0.45 lbs
AIRpipe Outer Dimension
40mm (1-1/2"), 50mm (2"), 63mm (2-1/2"), 80mm (3"), 100mm (4"), 150mm (6"), 200mm (8")
Color
Black, Silver Metallic
Features
Quick Installation
Connection
Hinge, Screw, Threaded 3/8-16
Temperature
Material
Galvanized Steel
AIRpipe Certification
ASME, ASTM, CE, CRN, EN, ISO 14001, ISO 8573-1, ISO 9001, TS, TUV, UL
