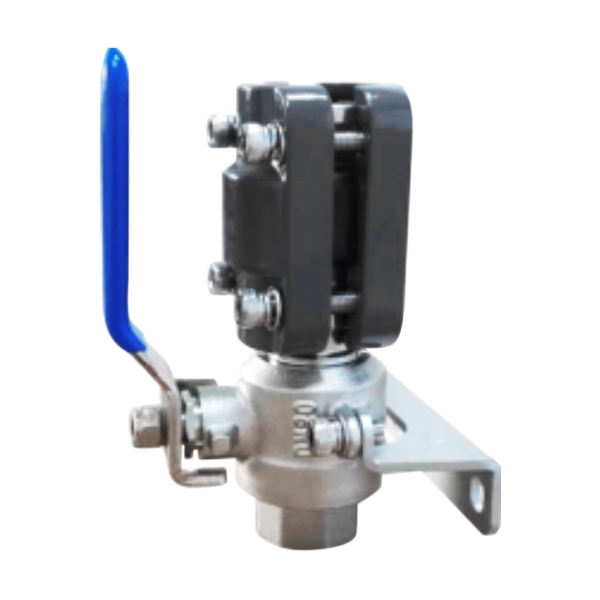

The One Port Female Wall Bracket is a high-performance solution designed for use with aluminum compressed air piping systems. Constructed from nickel-plated brass and aluminum, it offers excellent corrosion resistance, mechanical strength, and lightweight handling-ideal for industrial and commercial environments. The Quick Connection system (tool-assisted) enables fast and secure assembly, while the High Flow Design ensures maximum air volume with minimal pressure drop.
Key Features
- Durable Construction: Made from Aluminum & Nickel-plated Brass, offering exceptional resistance to corrosion, vibration, and thermal variation.
- Weather-Resistant: Performs reliably in outdoor and harsh industrial conditions.
- Metal Clamshell Connectors: Stronger and more durable than polymer alternatives.
- Advanced Ring Design:
- 20–50mm: Grab ring with full surface contact, ensuring no shrinkage and leak-free performance.
- 63mm: Lugged ring for zero risk of disconnection.
- Leak-Free Guarantee: Engineered for superior sealing and longevity compared to traditional pipe systems.
- Installation: No welding, gluing, brazing, soldering, or thread cutting required.
- Quick Assembly: Supplied with two union connectors for fast, full-volume flow connection.
- Reusable & Dismantlable: Easily disassembled and reassembled for maintenance or system upgrades.
- Non-Flammable Materials: Safe for use in high-risk industrial zones.
Available Sizes
- ¾” to 2”: Grab ring clamping style connection
- 2½”: Lugged ring with surface contact
- Threaded Outlet: Female threads compatible with standard NPT fittings
Seals
- Standard: EPDM for general use
- Optional: FKM for high-temperature and chemical environments
Applications
- Compressed Air (dry, wet, lubricated)
- Vacuum Systems
- Inert Gases (Argon, Helium, Nitrogen, CO₂ mixes)
Certifications
- ASME B31.1, B31.3
- ASTM B241, EN755-8, GB/T4437.1-2000, JIS H4080
- ISO 9001, 14001, 8573-1
Warranty
- 10-Year Warranty on all AP Stainless fittings
The One Port Female Wall Bracket is a must-have for contractors seeking a reliable, leak-proof, and easy-to-install solution for wall-mounted distribution points in industrial piping systems.
Use AIRpipe products in your next project design.
Download the drawing files in AutoCAD or STEP formats for your design software.
