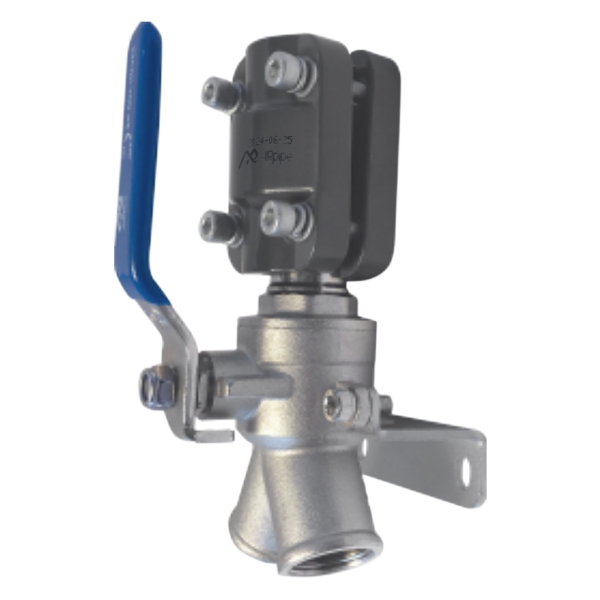

Two Port Female Wall Bracket

Key Features
- Durable Construction: Made from aluminum, providing excellent resistance to corrosion, vibration, and thermal variation.
- Weather-Resistant: Built to perform in outdoor and harsh industrial environments.
- Aluminum Clamshell Connectors: Stronger and more durable than polymer alternatives.
- Advanced Ring Design:
- 20–25mm: Grab ring with full surface contact, ensuring no shrinkage and leak-free performance.
- Leak-Free Guarantee: Engineered for superior sealing and longevity compared to traditional pipe systems.
-  Installation: No welding, gluing, brazing, soldering, or thread cutting required.
- Quick Assembly: Supplied with two union connectors for fast, full-volume flow connection.
- Reusable &  Easily disassembled and reassembled for maintenance or system upgrades.
- Non-Flammable Materials: Safe for use in high-risk industrial zones.
Available Sizes
- ¾” to 1”: Grab ring clamping style connection
- Threaded Outlets: Dual female threads compatible with standard industrial fittings
Applications
- Compressed Air (dry, wet, lubricated)
- Vacuum Systems
- Inert Gases (Argon, Helium, Nitrogen, CO₂ mixes)
Certifications
- ASME B31.1, B31.3
- ASTM B241, EN755-8, GB/T4437.1-2000, JIS H4080
- ISO 9001, 14001, 8573-1
Warranty
- 10-Year Warranty
The Two Port Female Wall Bracket is an essential component for contractors seeking a reliable, leak-proof, and easy-to-install solution for wall-mounted dual distribution points in industrial piping systems—delivering performance, flexibility, and long-term durability.
