- Key Features:
- Made from high-grade, corrosion-resistant aluminum for durability and long service life.
- Equal-sized ends for easy integration with matching pipe diameters.
- Internal design minimizes turbulence and pressure drop for superior performance.
- Quick installation using AIRpipe’s patented connection technology—no welding, threading, or special tools required.
- Captive seals and alignment stubs ensure a secure, leak-proof fit.
Technical Specifications:
Material: High-grade aluminum
- Connection Styles:

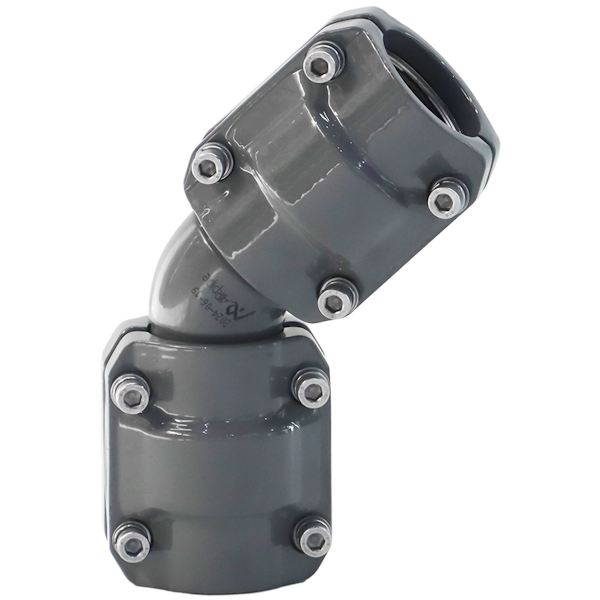

- 3/4″ through 2″: Grab Ring Clamping Style for quick, secure installation.

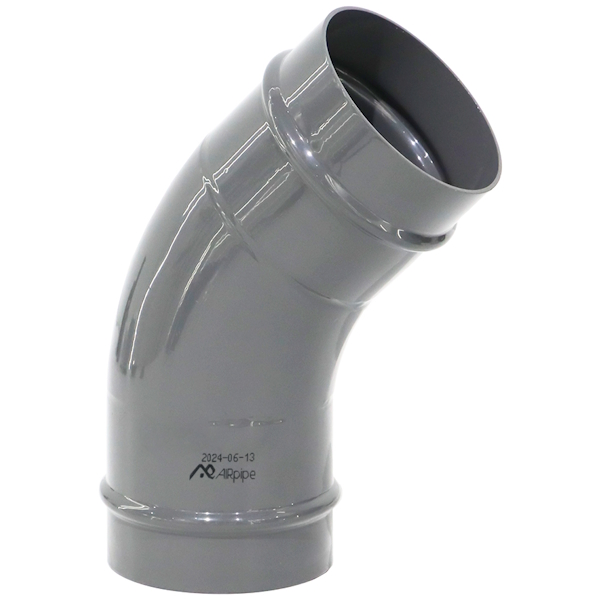

- 2-1/2″ through 10″: Lugged Ring Clamping Style for heavy-duty applications.
- Available Sizes: Compatible with AIRpipe OD ranges from 3/4″ to 10″
Pressure Rating: Up to 300 PSI
Temperature Range: -4°F to +176°FApplications:
Ideal for industrial compressed air systems where a 45-degree directional change is required for efficient layout and space optimization.Benefits:
- Lightweight yet robust for easy handling and installation.
- Energy-saving design reduces leaks and pressure loss.
- Reusable and adaptable for future system modifications.
Use AIRpipe products in your next project design.
Download the drawing files in AutoCAD or STEP formats for your design software.
